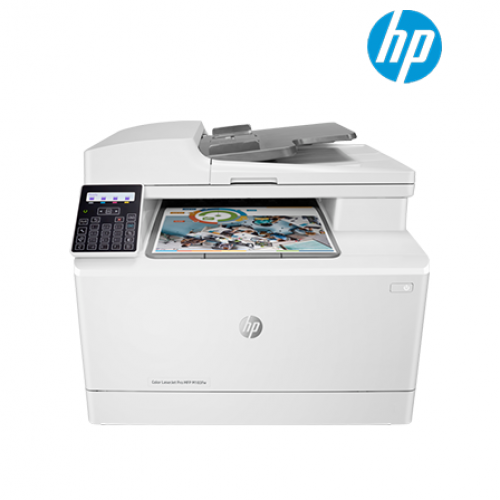

HP Color LaserJet Pro Multi Function Printer M183fw

Specifications

PRINT

Print speed, black11 – 20
Color outputColor
Print speed, color11 – 20

CATEGORY

Product typeLaser printers
Family brandLaserJet

USAGE

Perfect ForBusiness

FEATURES

FunctionsPrint scan copy and fax

PRINTING MEDIA HANDLING

Finished output handlingSheetfeed
Envelope input capacityUp to 15 mm (Recommended only 5 envelopes or less at a time)
Output capacityUp to 100 sheets (10 mm stack height)
Maximum output capacity (sheets)Up to 100 sheets (10 mm stack height)
Standard output capacity (transparencies)10 mm stack height
Media type and capacity, tray 115 mm stack height for 20# paper(75 g/m²)
Media type and capacity, ADF35 sheet of 20 lb plain paper
Paper handling input, standard150-sheet input tray
Input capacityUp to 150 sheets (15 mm stack height) in Tray 1
Paper handling output, standard100-sheet output bin
Standard output capacity (envelopes)10 mm stack height
Maximum input capacity (sheets)Up to 150 sheets (15 mm stack height) in Tray 1

DISPLAY SPECIFICATIONS

Display HP2-Line LCD
Display area (metric)57.58 x 11.88 mm
Display area (imperial)2.27 x 0.47 in

ENVIRONMENTAL

Acoustic pressure emissions bystander (active, printing)48 dB(A)(Mono); 49 dB(A) (Color)
Acoustic pressure emissions bystander (active scan)45 dB(A) (Mono); 42 dB(A) (Color)
Non-Operating Humidity Range0 to 95% RH
Operating humidity range10 to 80% RH
Storage temperature range-20 to 40°C
Operating temperature range10 to 32.5°C
Acoustic power emissions6.2 B(A) (Mono); 6.3 B(A) (Color)
Recommended operating temperature range15 to 27°C
Acoustic power emissions (ready)2.6 B(A)
Acoustic pressure emissions bystander (ready)16 dB(A)

SCAN SPEED

Scan speed (normal, letter)Up to 16.0 ppm (B/W); 9 ppm (Color)
Scan speed (normal, A4)Up to 15.0 ppm (B/W); 8 ppm (Color)

CARTRIDGES AND PRINTHEADS

TechnologyLaser
Number of print cartridges4 (1 each black, cyan, magenta, yellow)
Replacement cartridges(AMS+APJ) HP 215A Black LaserJet Toner Cartridge (~1050 yield) W2310A; HP 215A Cyan LaserJet Toner Cartridge (~850 yield) W2311A; HP 215A Yellow LaserJet Toner Cartridge (~850 yield) W2312A; HP 215A Magenta LaserJet Toner Cartridge (~850 yield) W2313A; (EMEA) HP 216A Black LaserJet Toner Cartridge (~1050 yield) W2410A; HP 216A Cyan LaserJet Toner Cartridge (~1050 yield) W2411A; HP 216A Yellow LaserJet Toner Cartridge (~850 yield) W2412A; HP 216A Magenta LaserJet Toner Cartridge (~850 yield) W2413A
Supplies featureHP JetIntelligence Cartridge

PRINT SPEED

Print speed black (normal, letter)Up to 17 ppm
Print speed black (normal, A4)Up to 16 ppm
Print speed colour (normal, A4)Up to 16 ppm
Print speedPrint speed up to 17 ppm (black) and 17 ppm (color)
Print speed color (normal, letter)Up to 17 ppm
Print speed black (Landscape, A5)Up to 26 ppm
Print speed black (Portrait, A5)Up to 5 ppm
Print speed color (Portrait, A5)Up to 5 ppm
Print speed color (Landscape, A5)Up to 21 ppm

COPY SPEED

Copy speed (black, normal quality, A4)Up to 16 ppm
Copy speed (colour, normal quality, A4)Up to 16 ppm
Copy speed black (normal, letter)Up to 17 ppm
Copy speed color (normal, letter)Up to 17 ppm

BATTERY AND POWER

Power110-volt input voltage: 110 to 127 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz)(Not dual voltage, product varies by part number with # Option code identifier)
Power Consumption313 watts(active printing), 7.4 watts(Ready), 0.7 watts(Sleep), 0.05 (Manual-Off), 0.05(Auto-Off/Manual-On), 1.0 watts(Auto-Off/Wake on LAN)
Power supply typeInternal (Built-in) power supply
PRINT TIME
First page out black (letter, ready)As fast as 11.6 sec
First page out black (A4, ready)As fast as 11.8 sec
First page out color (A4, ready)As fast as 13.8 sec
First page out color (letter, ready)As fast as 13.5 sec
First page out black (letter, sleep)As fast as 13.2 sec
First page out black (A4, sleep)As fast as 13.4 sec
First page out color (letter, sleep)As fast as 14.6 sec
First page out color (A4, sleep)As fast as 14.8 sec

PRINTER SPECIFICATIONS

Duty cycle (monthly, letter)Up to 30,000 pages
Envelope feederNo
FunctionsPrint, Copy, Scan, Fax
Print languagesHP PCL6; HP PCL5c; HP postscript level 3 emulation; PWG raster; PDF; PCLm; PCLm-S; URF
Paper trays, maximum1
Duty cycle (monthly, A4)Up to 30,000 pages
Paper trays, standard1
Recommended monthly page volume150 to 1500
Print technologyLaser
Duplex printingManual (driver support provided)
Warm-up timeAs fast as 59 sec
Fonts and typefaces84 scalable TrueType fonts. Additional Font Solutions available at http://www.hp.com/go/laserjetfonts
Automatic paper sensorNo
Printer managementHP Printer Assistant (UDC); HP Device Toolbox; HP JetAdvantage Security Manager
Print coloursYes
Top key features35-sheet ADF; Energy Efficient; Strong Security; Dualband Wi-Fi
Target user and print volumeFor teams up to 5 users; Prints up to 1,500 pages/month

SCANNER SPECIFICATIONS

Scan size (ADF), maximum215.9 x 355.6 mm
Scan file formatJPG, RAW (BMP), PNG, TIFF, PDF
Color scanningYes
Auto document feeder capacityStandard, 35 sheets
Scanner typeFlatbed, ADF
Scan size, maximum215.9 x 297 mm
Levels of grayscale256
Scan input modesFront-panel copy, fax; HP Scan software; and user application via TWAIN or WIA
Scan size ADF (minimum)148.5 x 210 mm
Bit Depth8-bit (mono); 24-bit (color)
Twain versionVersion 1.9 (Legacy OS); Version 2.1 (Windows 7 or higher)
Duplex ADF scanningNo
Software scan file formatJPG, RAW (BMP), PNG, TIFF, PDF
Native scan file formatJPG; PDF
Scan technologyContact Image Sensor (CIS)
Scan size, maximum8.5 x 11.7 in
Scan size (ADF), maximum8.5 x 14 in
Scan size ADF (minimum)5.85 x 8.27 in

CERTIFICATION AND COMPLIANCE

ENERGY STAR® certifiedYes
Energy Efficiency ComplianceEPEAT® Silver; ENERGY STAR® qualified
Electromagnetic Emission StandardCISPR32:2012 & CISPR32:2015 /EN55032:2012 & EN55032:2015+AC:2016 – Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 6
Safety Approvals and RequirementsEN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009+A2:2013; EN 60825-1:2014 / IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; CAN/CSA C22.2 No. 60950-1-07 2nd Ed.March 27, 2007 Compliance of IEC 60950-1 standard considers all country deviations according to the most recent IECEE CB Bulletin.; Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Telecom compliance (fax capability)Fax Telecom: ES 203 021; FCC Title 47 CFR, Part 68; Industry Canada CS03; NOM-151-SCTI-1999 (Mexico); PTC-200 (New Zealand); other Telecom approvals as required by individual countries. Wireless: EU RED 2014/53/EU; EN 301 489-1 V2.1.1 / EN 301 489-17: V3.1.1; EN 300 328: V2.1.1 / EN301 893 V2.1.1; FCC Title 47 CFR, Part 15 Subpart C & E / RSS 247 Issue 1, 2015 & RSS 102 Issue 5, 2015; IEC 62311:2007 / EN62311:2008
EnvironmentalMercury Free
Certifications and compliancesRCM (Australia), TUV and GS Mark (Germany), BSMI (Taiwan), CCC (China), BIS (India), KC (South Korea), SIRIM (Malaysia), Cambodia, Ukraine, EAC, Eastern European approvals, CE Marking, FCC, Energy Star, UL, Paraguay, Indonesia, Singapore, Philippines, etc.

GEOGRAPHIC

Country of originMade in Vietnam

WARRANTY

WarrantyOne-year unit exchange warranty. Warranty and support options vary by product, country and local legal requirements. Go to http://www.hp.com/support to learn about HP award winning service and support options in your region.

DIMENSIONS

Dimensions without stand (W x D x H)420 x 380 x 341.2 mm
Package dimensions (W x D x H)497 x 398 x 466 mm
Maximum dimensions (W x D x H)435 x 435 x 343 mm
Minimum dimensions (W x D x H)16.5 x 15.0 x 13.4 in
Package dimensions (W x D x H)19.56 x 15.66 x 18.34 in

WEIGHTS

Weight16.3 kg
Package weight19.5 kg
Package weight42.9 lb

CONNECTIVITY AND COMMUNICATIONS

Modem33.6 kbps
Connectivity, standardHi-Speed USB 2.0 port; built-in Fast Ethernet 10/100 Base-TX network port, 802.11n 2.4/5GHz wireless, Fax port
Network capabilitiesYes, via built-in 10/100 Base-TX Ethernet; authentication via 802.1X
Wireless capabilityBuilt-in 802.11 b/g/n; authentication via WEP, WPA/WPA2, or 802.1X; encryption via AES or TKIP; WPS; Wi-Fi Direct
Mobile printing capabilityHP ePrint; Apple AirPrint™; Mobile Apps; Mopria™ Certified; Wi-Fi® Direct Printing
Network protocols, supportedTCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6
Plug and playAuto Wireless Connect

FAX SPECIFICATIONS

Auto redialYes
Speed dials, maximum numberUp to 120 numbers
Fax memoryUp to 1300 pages
PollingYes (receive only)
Fax forwardingYes
Broadcast locations119
Fax delayed sendingYes
FaxingYes
Junk fax barrierYes, CSID matching only (Caller ID not supported)
Remote retrievalNo
Auto fax reduction supportedYes
PC interface supportedYes
Telephone handset supportedYes
Distinctive ring detection supportedYes
Fax telephone mode supportedYes
Fax memoryUp to 1300 pages

SYSTEM COMPONENTS

Control panel2-line LCD with 26 buttons (0~9 digitals, Star, Pound, Left, Right, OK, Cancel, Back, Main Setup, wireless, Color copy, Mono copy, Copy amount, Dark/light, Copy setup, Start Fax, Redial) and 3 indicator light (Ready, Error, Wireless)

PROCESSOR

Processor speed800 MHz

SCAN RESOLUTION

Scan Resolution, HardwareUp to 300 x 300 dpi (color and mono, ADF); Up to 1200 x 1200 dpi (color and mono, flatbed)
Enhanced scanning resolutionUp to 300 x 300 dpi (ADF); up to 1200 x 1200 dpi (Flatbed)
Scan Resolution, OpticalUp to 300 dpi (color and mono, ADF); Up to 1200 dpi (color and mono, flatbed)

MEMORY

Memory256 MB DDR, 128 MB Flash
Memory, maximum256 MB DDR, 128 MB Flash

BOX CONTENTS

Cable includedYes, 1 USB; Yes, 1 phone cord.

FAX SPEED

Fax transmission speed33.6 kbps (maximum); 14.4 kbps (default)
Fax transmission speed3 sec per page

SUPPORTED PRINTING MEDIA

Media sizes supportedLetter(216 x 280); Legal(216 x 356); Executive(184 x 267); Oficio 8.5×13(216 x 330); 4 x 6(102 x 152); 5 x 8(127 x 203); A4(210 x 299); A5(148 x 210); A6(105×148); B5(JIS)(182 x 257); B6(JIS)(128 x 182); 10x15cm(100 x 150); Oficio 216x340mm(216 x 340); 16K 195x270mm(195×270); 16K 184x260mm(184×260); 16K 197x273mm(197×273); Postcard(JIS)(100 x 147); Double Postcard(JIS)(147 x 200); Envelope #10(105 x 241); Envelope Monarch(98 x 191); Envelope B5(176 x 250); Envelope C5(162 x 229); Envelope DL(110 x 220); A5-R(210 x 148)
Media size, tray 1Letter(216 x 280); Legal(216 x 356); Executive(184 x 267); Oficio 8.5×13(216 x 330); 4 x 6(102 x 152); 5 x 8(127 x 203); A4(210 x 299); A5(148 x 210); A6(105×148); B5(JIS)(182 x 257); B6(JIS)(128 x 182); 10x15cm(100 x 150); Oficio 216x340mm(216 x 340); 16K 195x270mm(195×270); 16K 184x260mm(184×260); 16K 197x273mm(197×273); Postcard(JIS)(100 x 147); Double Postcard(JIS)(147 x 200); Envelope #10(105 x 241); Envelope Monarch(98 x 191); Envelope B5(176 x 250); Envelope C5(162 x 229); Envelope DL(110 x 220); A5-R(210 x 148)
Media weight, supported60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver; 60 to 163 g/m² (Coated/Glossy, recommended), however up to 175 g/m² Postcards and 220 g/m² HP Glossy is allowed in the driver.
Media typesPaper (bond, brochure, colored, glossy, heavy, letterhead, light, photo, plain, preprinted, prepunched, recycled, rough), transparencies, labels, envelopes, cardstock
Media weight (tray 1)60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver; 60 to 163 g/m² (Coated/Glossy, recommended), however up to 175 g/m² Postcards and 220 g/m² HP Glossy is allowed in the driver.
Media weights, supported, ADF70 to 90 g/m²
Media sizes, custom76 x 127 to 216 x 356 mm
Media sizes supported, key4 x 6 in; Letter; Legal; Envelopes
Media sizes supported, key10 x 15 cm; A4; Envelopes
Media size (ADF)A4; LTR; LGL
Media weight, supported16 to 43 lb (Uncoated/Matte, recommended), however up to 47 lb Postcards and 53 lb HP Matte is allowed in the driver; 16 to 43 lb (Coated/Glossy, recommended), however up to 47 lb Postcards and 59 lb HP Glossy is allowed in the driver.
Media sizes supportedLetter(8.5 x 11); Legal(8.5 x 14); Executive(7.2 x 10.5); Oficio 8.5×13(8.5 x 13); 4 x 6(4 x 6); 5 x 8(5 x 8); A4(8.3 x 11.7); A5(5.8 x 8.3); A6(4.1 x 5.8); B5(JIS)(7.2 x 10.1); B6(JIS)(5 x 7.2); 10x15cm (3.9 x 5.9); Oficio 216×340 mm(8.5 x 13.4); 16K 195x270mm(7.6 x 10.6); 16K 184x260mm(7.2 x 10.2); 16K 197x273mm(7.8 x 10.7); Postcard (JIS)(3.9 x 5.8); Double Postcard(JIS)(5.8 x 7.9); Envelope #10(4.1 x 9.5); Envelope Monarch(3.9 x 7.5); Envelope B5(6.9 x 9.8); Envelope C5(6.4 x 9); Envelope DL(4.3 x 8.7); A5-R(8.3 x 5.8)
Media weights, supported ADF18.5 to 24 lb
Media sizes, custom3 x 5 to 8.5 x 14 in

SYSTEM REQUIREMENTS

Minimum System Requirements for MacintoshApple® macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14) macOS Catalina(v10.15); 200MB HD; Internet required for download; USB
Minimum System RequirementsWindows® 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista®: (32-bit), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows® XP SP3 or higher (32-bit only): any Intel® Pentium® II, Celeron® or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher.

FAX RESOLUTION

Fax resolutionUp to 300 x 300 dpi
Resolution (black and white, standard mode)203 x 98 dpi
Fax resolution blackUp to 203 x 196 dpi
Resolution (black and white, superfine mode)Up to 300 x 300 dpi
Resolution (black photo grayscale)300 x 300 dpi (halftone)

SOFTWARE AND APPLICATIONS

Driver updatesLatest supported operating systems and print drivers available at http://www.hp.com/support/ljM178MFP
Downloadable softwareFrom 123.hp.com/laserjet: HP Easy Start (Guided Software Install for Windows); From 123.hp.com: HP Smart for Windows and Mac; From HP.com for Windows OS, Full-solution software and drivers; Basic-solution software and drivers (with installer); Product Documentation and Support; For Mobile OS See “HP Mobile Printing” (http://www8.hp.com/us/en/ads/mobility/overview.html). From In-OS app stores: HP Smart; HP recommended printer drivers and software; From HP.com for printer administrators: Printer Administrator Resource Kit (Driver Configuration Utility, Driver Deployment Utility, Managed Printing Administrator); HP Universal Print Drivers (PCL6, PS); Linux/Unix Print Drivers; SAP (PS Print Drivers); HP Web JetAdmin Software (HP SNMP Proxy Agent); HP JetAdvantage Security Manager
Mac compatibleYes
Software includedNo CD (Software is not included In-Box), Downloadable Software only from hp.com, http://123.hp.com/laserjet or 123.hp.com

SUPPORTED OPERATING SYSTEMS

Compatible Operating SystemsWindows® 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer. Windows Vista®: (32-bit only), 2 GB available hard disk space, Internet connection, USB port, Internet Explorer 8. Windows® XP SP3 or higher (32-bit only): any Intel® Pentium® II, Celeron® or 233 MHz compatible processor, 850 MB available hard disk space, Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. Apple® macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14)macOS Catalina(v10.15); 200MB HD; Internet required for download; USB. Linux (For more information, see https://developers.hp.com/hp-linux-imaging-and-printing). Unix (For more information, see http://www.hp.com)
Compatible network operating systemsWindows® 10, 8, 8.1, 7: 32-bit or 64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. Apple® macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14) macOS Catalina(v10.15); 200 MB HD; Internet required for download; USB. Linux (For more information, see https://developers.hp.com/hp-linux-imaging-and-printing). Unix (For more information, see http://www.hp.com)
Operating system (supported note)Not supportingWindows® XP (64-bit) and Windows Vista® (64-bit); “Compatible Operating Systems” are not supported with INBOX software, but downloadable from online; Full solution software available only for Windows 7 and newer; Windows Server OS install driver only; Windows RT OS for Tablets (32 & 64-bit) uses a simplified HP print driver built into the RT OS; Linux systems use in-OS HPLIP software

PRINT RESOLUTION

Print quality black (normal)Up to 600 x 600 dpi
Print quality black (best)Up to 600 x 600 dpi
Print quality color (best)Up to 600 x 600 dpi
Print resolution color (normal)Up to 600 x 600 dpi

RACK AND POWER SPECIFICATIONS

Typical electricity consumption (TEC) numberES: 0.203 kWh/Week; BA: 0.531 kWh/Week
Number of users1-3 Users

PRINT AREA

Maximum print area206 x 346 mm
Right margin (A4)5 mm
Top margin (A4)5 mm
Bottom margin (A4)5 mm
Left margin (A4)5 mm

DIGITAL SENDER SPECIFICATIONS

File formats, supportedPDF; JPG

ADVANCED FEATURES

Scanner advanced featuresHP Scanning software; 35-sheet Automatic Document Feeder (ADF) for unattended scanning of multiple pages; automatic scan cropping; Scan to Google Drive/Drop box (PC); Scan to FTP(PC); Scan to Microsoft One Drive, Share Point (PC); Save as editable file (text, PDF)
Copier smart software featuresUp to 99 multiple copies, Reduce/Enlarge from 25 to 400%, Fit to page, Customizable copy presets (two or four pages to one page), Contrast (lighter/darker), ID copy, Optimize copy selection (with presets: autoselect, mixed, printed picture, text)
Printer smart software featuresWireless direct printing, HP ePrint, Apple AirPrint™, Mopria-certified, HP Auto-On/Auto-Off technology, HP Smart App, Smart task shortcuts in HP Smart App, HP JetAdvantage Secure Print
Fax smart software featuresAuto redialing, delayed sending, fax forwarding, TAM interface, distinctive ring detection, cover page wizard (Software only), block fax, billing codes, poll receive, fax activity reports, dial prefix setting
Energy savings feature technologyHP Auto-On/Auto-Off Technology; Instant-on Technology

COPIER SPECIFICATIONS

Copies, maximumUp to 99 copies
Copy reduce / enlarge settings25 to 400%
Copier scaling (ADF)25 to 400%
Copier settingsNumber of copies; Reduce/Enlarge; Lighter/Darker; Optimize; Paper; Multi-page copy; Collation; Draft Mode; Image Adjustment; Set as New Defaults; Restore Defaults

SECURITY MANAGEMENT

Security managementEmbedded Web Server: password-protection, secure browsing via SSL/TLS; Network: enable/disable network ports and features, SNMPv1 community password change; HP ePrint: HTTPS with certificate validation, HTTP Basic Access Authentication; Firewall and ACL; SNMPv3

MULTIMEDIA AND INPUT DEVICES

Fax phone TAM interface supportedYes
Resolution1200 dpi optical sensor
